Anyang FP Blacksmith Forging Equipment
Anyang Blacksmith Hydraulic Press
H-Frame
Heavy-duty industrial H-frame press scaled down for the blacksmith shop — large upper and lower "T"-slotted platens and a fully enclosed hydraulic circuit.
Overview
About this machine
Anyang Forging Press has been making forging machines since 1956. The forging press sizes have ranged from 800 ton to 8000 ton and are found in many automotive and industrial forging companies around the world.
In 2017 the company decided to utilize this knowledge of presses and machining capability to make a series of presses aimed at the blacksmith, bladesmith and small industrial sector. Sizes range from 25 ton (metric), or 27.5 ton (imperial), to 50, 75 and 100 ton models.
Key data
Main specifications
- Capacity
- 25T / 50T / 75T / 100T
- Stroke
- 30 mm
- Hydraulics
- Enclosed circuit, no exposed hoses
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
Quiet operation
Quiet operation — a clear advantage over forging hammers in small shops.
Enclosed hydraulics
Enclosed hydraulics with steel hydraulic lines — no rubber hoses to break or catch fire.
T-slotted platens
Large T-slotted upper and lower platens for specialized tooling.
Return stroke timer
Timer to minimize up travel time.
30 mm stroke
Long 30 mm stroke.
Side access
Side access for longer pieces.
Precision-machined guide system
Precision-machined guide system with replaceable wear strips.
Heavy duty H frame
Heavy duty H frame industrial design with no deflection.
Large filtered oil reservoir
Extra large, filtered oil reservoir.
In use
Applications
- Blacksmith and bladesmith shops
- Small industrial sector
- Available models: 25 ton (27.5 ton imperial), 50, 75 and 100 ton
Gallery

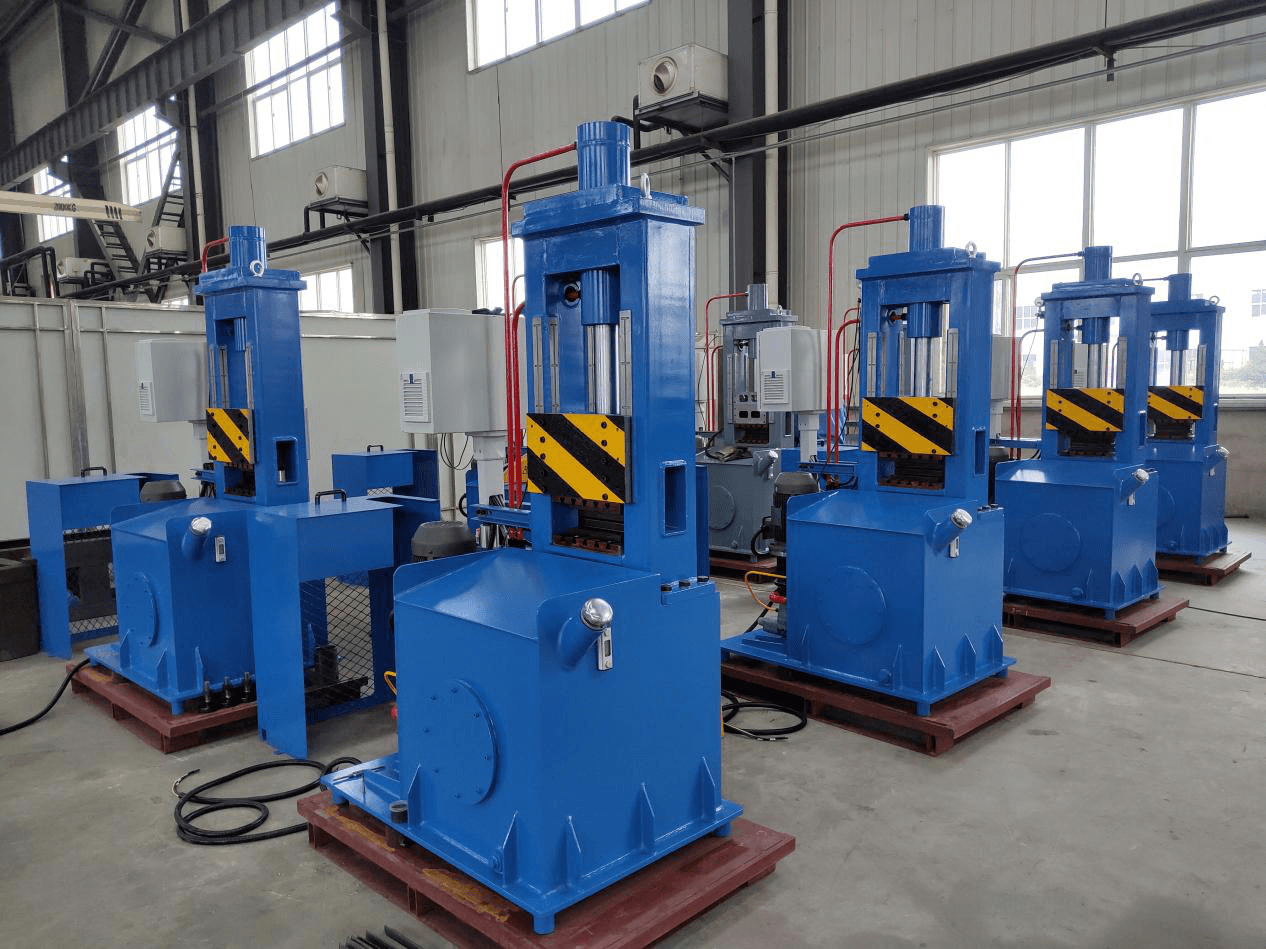

Anyang Blacksmith Hydraulic Press

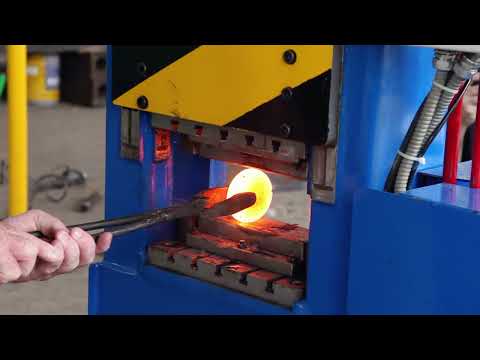

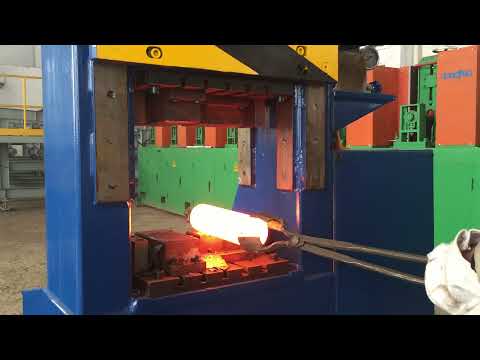

Video
See it working
Main technical parameters of the Y04 series blacksmith hydraulic press
| Parameter | Unit | Y04-25 | Y04-50 | Y04-150 |
|---|---|---|---|---|
| Normal force | T | 25 | 50 | 150 |
| Working speed | mm/s | ≤20 | ≤20 | ≤15 |
| Stroke speed — down | mm/s | ≥40 | ≥50 | ≥150 |
| Stroke speed — up | mm/s | ≥60 | ≥55 | ≥100 |
| Maximum working area (L × H) | mm | 300×400 | 380×400 | 600×600 |
| Dimension of worktable (L × W) | mm | 300×200 | 380×300 | 600×400 |
| Worktable height | mm | 900±20 | 900±20 | 700±20 |
| Hydraulic oil volume (anti-wear YB-N46) | L | 240 | 450 | 450 |
| Motor power | kW | 4 | 7.5 | 30 |
| Outsize (L × W × H) | mm | 1200×765×2080 | 1500×1110×2140 | 2850×1600×4080 |
| Weight | kg | 860 | 1855 | 9000 |
* Values are indicative and can be adapted to your specific workshop requirements.
Advantages
Why choose Anyang
No external compressor
The pneumatic hammer generates its own working air through an internal motor-driven system — no separate compressed air installation required.
01Cast iron frame, lifetime warranty
The cast frame carries a lifetime warranty, while wearing parts and electrical components are covered for 1 year.
02Shock-free hydraulic press
A fully enclosed hydraulic circuit with no exposed rubber hoses — quiet operation without the hammer's characteristic vibration.
03Fast installation
Set up and running in about 30–45 minutes, with CE certification for operator safety.
