A complete equipment range
From billet handling and ring rolling to shearing, descaling and final pressing — 15 distinct machines cover virtually every complementary stage of the forging workflow.
01
Other forging machinery
Other Forging Machine
Complementary solutions for the workshop. In addition to our core forging machines, Anyang also supplies Ring Rolling Machines, Billet Shears, Wedge Drives, Roll Forging Machines, Cross Wedge Rolling Machines and other complementary equipment for a complete forging workshop.
- 15
- Models available
- 10+
- Industries served
- CNC/PLC
- Modern control
About the category
Complementary equipment for a complete forging workshop
Beyond our core hammers and presses, Anyang produces a broad range of complementary equipment designed to cover every stage of the forging workflow — from billet handling and ring rolling to shearing, descaling and final pressing.
This category brings together 15 distinct machine types: horizontal and vertical ring rolling machines, single-point closed presses, precision bar cutting lines, cross wedge rolling machines, wedge drive devices and more.
Each machine is designed to run standalone or fully integrated, alongside Anyang CNC hammers and presses, into automated production lines built around your productivity, precision and safety needs.
Whether you need a single piece of equipment or a complete forging line, our technical team can help you put together the right combination from this extensive portfolio.
Advantages
Why choose this Anyang portfolio
Integration with existing lines
Every machine is designed to run standalone or integrated, alongside Anyang CNC hammers and presses, into fully automated production lines.
02Precision and material efficiency
Technologies such as ring rolling and cross wedge rolling reduce material waste and improve dimensional accuracy compared with conventional cutting or free-forging methods.
03Robust construction, modern control
Welded steel frames, PLC/CNC control and reliable hydraulic or pneumatic systems, built for continuous, multi-shift operation.
04Models
All 15 machines in this category

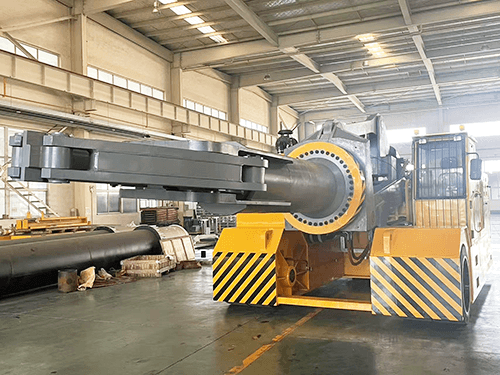

Self-Propelled Railless Loading/Unloading Machine
A hydraulically-driven, remote-controlled mobile machine for automatic loading, unloading, handling and positioning of billets into heating furnaces and forging equipment on hot-forging lines.
- Clamp force
- 150kN
- Max. billet dia./length
- 150mm / 1000mm
- Walking speed
- 0–50m/min
D53KCNC Ring Rolling Machine (Horizontal)
Horizontal CNC-controlled ring rolling machine for large seamless ring forgings, used across machinery, automotive, marine, petrochemical, aerospace and wind-power industries.
- Ring diameter range
- 1000mm–12000mm
- Rolling axes
- Radial & axial
- Materials
- Carbon/alloy/stainless steel, titanium, copper, aluminum
D51Ring Rolling Machine (Vertical)
Vertical ring rolling machine producing bearing outer rings, gear blanks and flanges in a single rolling operation, improving blank precision and material efficiency compared with free forging.
- Models
- D51-350E / D51-500E / D51-1000E
- Structure
- Heat-treated cast/alloy steel components
- Automation
- High automation, compact footprint

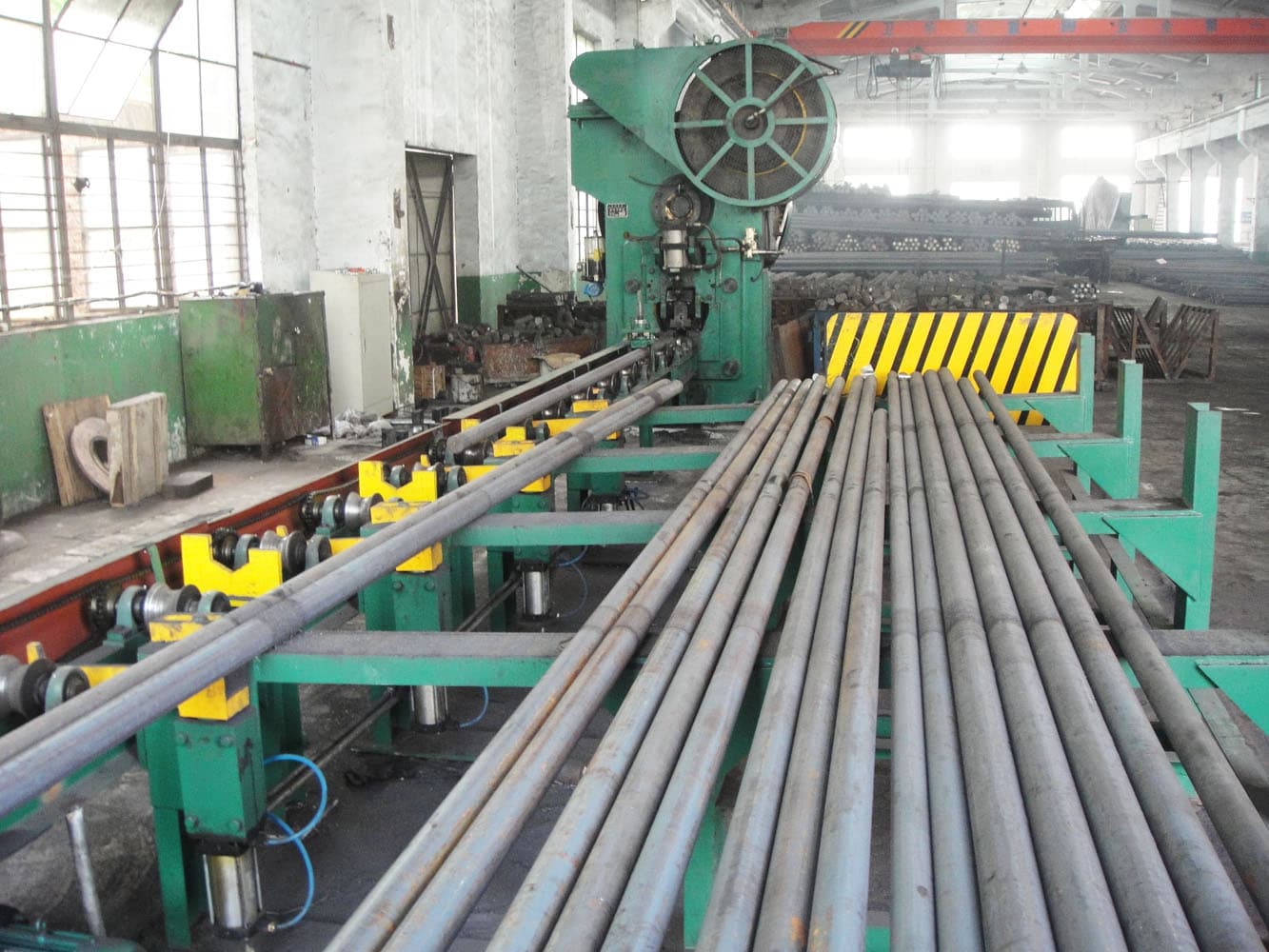

Billet Shearing Machine
A cold shearing machine that uses hydraulically-generated shear force to cut steel bar stock for closed-die forging lines, with PLC-controlled feeding, cutting, counting and lubrication.
- Section slope
- ≤3°
- Weight error
- within 0.5%
- Control
- PLC, automatic feed/cut/count

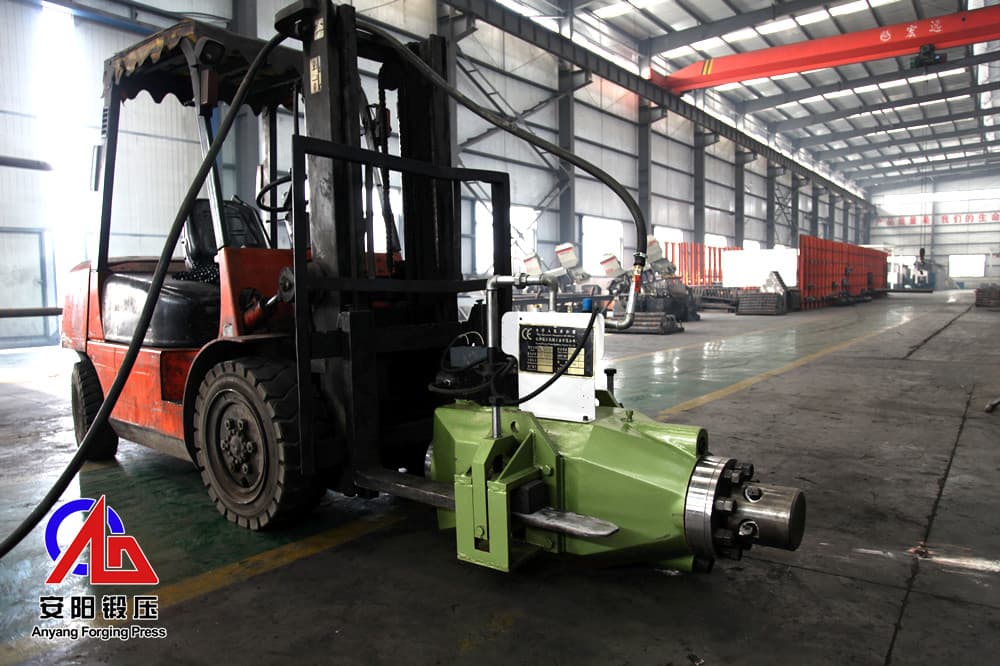

Wedge Drive Device
A pneumatic tool used with a forklift to drive wedges into and out of forging hammer dies, replacing the traditional sledgehammer method with adjustable, single-operator force control.
- Power source
- Compressed air
- Strike force
- 6 adjustable levels
- Operation
- Two-handed control, single operator
WGPHot Forging Press
A hot-die forging press with an eccentric-shaft-balanced structure and a high-rigidity double-point wide connecting rod, built for fast-cycle, low-vibration forging in automated production lines.
- Transmission
- Gear + flywheel
- Structure
- High-rigidity frame, extended guide rails
- Applications
- Automotive, tractor, engine, aviation, shipbuilding
JH21Open Fixed-Table Press
An open (C-frame) fixed-worktable press with PLC control and a pneumatic double-balance-cylinder system, offering three-side die access for large, heavy dies and automation.
- Frame
- Open C-type, 3-side access
- Guide rails
- Rectangular, extended, 6-sided
- Table
- Fixed, for large/heavy dies
ZGDAutomatic Roll Forging Machine
An automatic roll forging machine for pre-forging or final forging of closed-die parts, integrated into automated lines with CNC hammers or screw presses, used for connecting rods, steering knuckles and crankshafts.
- Process
- Forming + preforming rolling stages
- Technology base
- European roll-forging technology
- Applications
- Connecting rods, steering knuckles, crankshafts

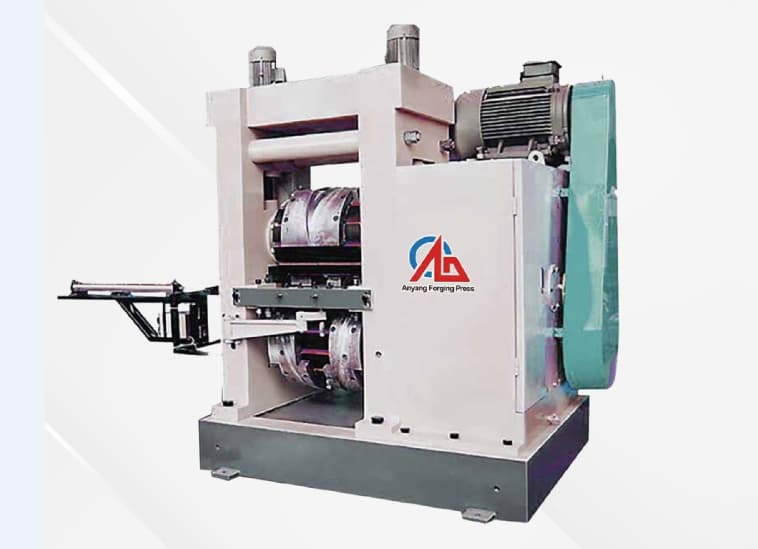

Cross Wedge Rolling Machine
A continuous rolling process using wedge-shaped dies to form stepped, tapered shaft parts in a single pass without cutting waste, used in automotive, aerospace and machinery manufacturing.
- Material utilization
- >90% vs. cutting
- Process
- Continuous rolling, no high-temp heating required

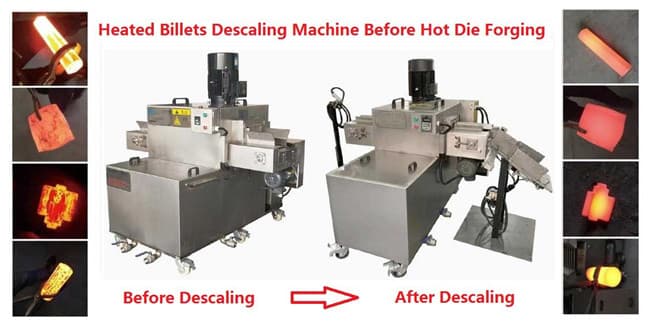

Descaling Machine
Removes oxide scale from red-hot forged billets before die forging, using adjustable scrapers and torsion springs, preventing surface pitting and improving part quality.
- Pressure
- 1.5–1.7 MPa
- Voltage
- 380V
- Material
- SS304 stainless steel

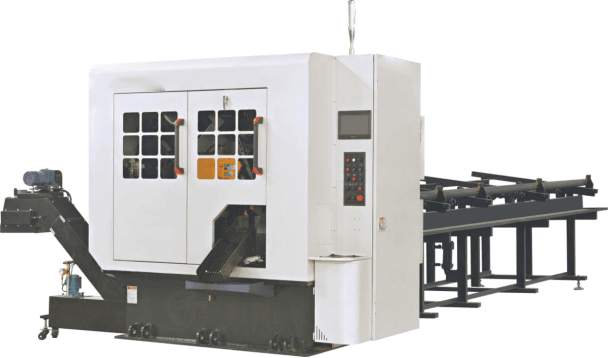

Fully Automatic Circular Metal Saw
A fully automatic high-speed circular saw for cold-sawing metal billets, transferring cutting heat into the swarf to keep the workpiece and blade cool, with automatic feeding, clamping and lubrication.
- Power supply
- 380V ±10%, 50Hz
- Air pressure
- 0.4–0.6 MPa
- Footprint
- 8.5×2.9×2.3m
JW31JW31 Series Single-Point Closed Press
A closed-frame single-point mechanical press with double-crankshaft reverse transmission and anti-eccentric-load guide rails, delivering high precision and resistance to off-center loads.
- Nominal force
- 2000kN
- Nominal stroke
- 6mm
- Motor power
- 18.5kW
JS31JS31 Series Single-Point Closed Press
A single-point closed press with an integral steel-plate-welded frame, delivering high rigidity, dynamic precision and a spacious work area for automated production lines.
- Nominal force
- 4000kN
- Slide stroke
- 250mm
- Strokes per minute
- 25 min⁻¹
X-Q45Precision Bar Cutting Line
A precision bar shearing line using a constraint-shearing principle for near-zero material loss, more than 10× faster than a band saw and roughly 3× more precise than ordinary bar shears.
- Shear force
- 2000kN
- Max. shear diameter
- Ø70mm
- Blocking range
- 50–350mm
WPWP Series Hot Forging Press
A hydraulic hot-die forging press delivering high working pressure with automated control for forming complex shapes, used in metal forming, aviation and automotive applications.
- Capacity
- 10000kN
- Stroke
- 250mm
- Motor power
- 75kW
Gallery
Equipment in production and in the workshop
Need a complementary machine?
Our technical team helps you identify the right equipment from this extensive portfolio, for any stage of your forging workflow.
