Pre-forging and final forging
Used both for the pre-forging of closed die forgings and for the final forgings.
Other Forging Machine
Automatic Roll Forging Machine
ZGD
An automatic roll forging machine for pre-forging or final forging of closed-die parts, integrated into automated lines with CNC hammers or screw presses, used for connecting rods, steering knuckles and crankshafts.
Overview
About this machine
The ZGD series automatic roll forging machine is mainly used for the pre-forging of closed die forgings or for doing the final forgings.
The machine integrates with various forging equipment to create comprehensive production solutions and supports automation through robotic systems.
The ZGD series incorporates European technology combined with Anyang’s proprietary expertise in forming and rolling processes, with products continuously optimized and improved.
Key data
Main specifications
- Process
- Forming + preforming rolling stages
- Technology base
- European roll-forging technology
- Applications
- Connecting rods, steering knuckles, crankshafts
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
Line integration
Integrates with various forging equipment to create comprehensive production solutions.
Robot ready
Supports automation through robotic systems.
European technology
Combines European technology with Anyang’s own expertise in forming and rolling.
In use
Applications
- Automotive manufacturing: front axles, connecting rods, steering knuckles, crankshafts
- Tractor production
- Energy sector
- Hand-tool manufacturing
- Turbine blade fabrication
Gallery
Automatic Roll Forging Machine

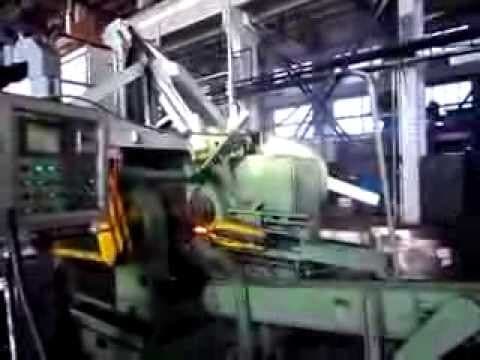

Video
See it working
Main technical parameters of the ZGD series automatic roll forging machine
| Parameter | Unit | ZGD370 | ZGD460 | ZGD560 | ZGD680 | ZGD1000 | ZGD1250 |
|---|---|---|---|---|---|---|---|
| Outer diameter of rolling die | mm | 370 | 460 | 560 | 680 | 1000 | 1250 |
| Width in commission for rolling | mm | 500 | 570 | 700 | 850 | 1200 | 1400 |
| Max. length of work-piece | mm | 570 | 710 | 870 | 1050 | 1920 | 2500 |
| Adjustment of center distance | mm | 15 | 17 | 20 | 20 | 25 | 20 |
| Rotating speed of roller | rpm | 62 | 56 | 52 | 40/25 | 15/30 | 8 |
| Max. blank dimension — square | mm | 50 | 65 | 90 | 110 | 140 | 180 |
| Max. blank dimension — round | mm | φ55 | φ75 | φ100 | φ125 | φ160 | φ200 |
| Longitudinal stroke of transfer arm | mm | 490 | 630 | 758 | Independent manipulator 800 | Independent manipulator 7000 | Independent manipulator 7000 |
| Lateral stroke of transfer arm | mm | 436 | 505 | 550 | 750 | 920 | 1420 |
| Vertical and horizontal adjustability | mm | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Adjustment of longitudinal position | mm | 200 | 200 | 400 | Unadjustable | Unadjustable | Unadjustable |
| Single lateral stroke | mm | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Max. load capacity | kg | 12 | 12 | 30 | 50 | 150 | 250 |
| Main motor power | kW | 18.5 | 22 | 55 | 132 | 250 | 355 |
| Total weight | t | 10 | 12.5 | 22 | 60 | 70 | 120 |
* Specifications shown correspond to the reference model in each series and may vary by configuration.
Advantages
Why choose Anyang
A complete equipment range
From billet handling and ring rolling to shearing, descaling and final pressing — 15 distinct machines cover virtually every complementary stage of the forging workflow.
01Integration with existing lines
Every machine is designed to run standalone or integrated, alongside Anyang CNC hammers and presses, into fully automated production lines.
02Precision and material efficiency
Technologies such as ring rolling and cross wedge rolling reduce material waste and improve dimensional accuracy compared with conventional cutting or free-forging methods.
03Robust construction, modern control
Welded steel frames, PLC/CNC control and reliable hydraulic or pneumatic systems, built for continuous, multi-shift operation.
