Self-Propelled Railless Loading/Unloading Machine
A hydraulically-driven, remote-controlled mobile machine for automatic loading, unloading, handling and positioning of billets into heating furnaces and forging equipment on hot-forging lines.
Overview
About this machine
The machine provides automatic loading, unloading, handling and positioning of billets — such as ingots and bars — and conveniently feeds the workpiece into the heating furnace.
It retrieves the heated workpiece out of the heating furnace and quickly feeds it into forging equipment such as forging hammers, presses or ring rolling machines. It is widely used in hot processing scenarios such as die forging and free forging.
It replaces manual operation, improves production efficiency, reduces labour intensity and ensures operation safety in high temperature and heavy load environments.
Key data
Main specifications
- Clamp force
- 150kN
- Max. billet dia./length
- 150mm / 1000mm
- Walking speed
- 0–50m/min
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
Flexibility
The wheeled hydraulic loading and reclaiming machine has better mobile performance and adaptability and can be operated at different sites.
Automation
The equipment can realize remote control and monitoring, reducing the need for manual operation.
Load capacity
The fully hydraulic loading and unloading machine has a strong carrying capacity and can handle a variety of large, heavy materials.
Maintenance
The structure is relatively simple and the parts are easy to disassemble and replace.
Safety
Includes travel limit protection and overload protection.
In use
Applications
- Heavy forging: wind turbine shafts, ship crankshafts, nuclear components
- Automobile manufacturing: connecting rods, gears, knuckles
- Aerospace: engine blades, landing gear
Gallery

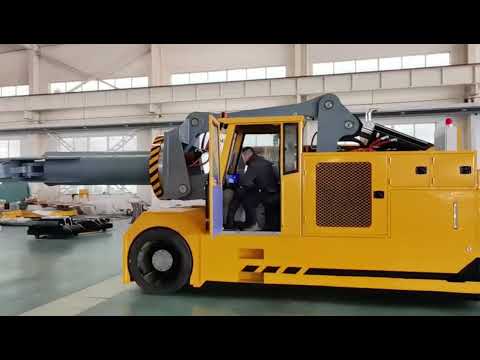

Self-Propelled Railless Loading/Unloading Machine
Video
See it working
Main technical parameters of the self-propelled railless loading and unloading machine (models marked * belong to the heavy series)
| Parameter | Unit | 0,5 T | 1 T | 2 T | 3 T | 3,5 T | 3 T* | 5 T* | 8 T* | 10 T* | 15 T* | 20 T* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated capacity | kN | 5 | 10 | 20 | 30 | 35 | 30 | 50 | 80 | 100 | 150 | 200 |
| Rated loading moment | kN·m | 18,7 | 37,5 | 78 | 109 | 128 | 120 | 165 | 322 | 430 | 520 | 730 |
| Tong clamping range | mm | Φ60–Φ700 | Φ80–Φ800 | Φ80–Φ850 | Φ80–Φ900 | Φ100–Φ950 | Φ60–Φ650 | Φ200–Φ2000 | Φ300–Φ2200 | Φ300–Φ2200 | Φ300–Φ2500 | Φ300–Φ2500 |
| Peel minimum horizontal position | mm | 500 | 500 | 700 | 900 | 900 | 500 | 850 | 855 | 900 | 1000 | 1200 |
| Peel lifting height | mm | 2000 | 2000 | 2200 | 2300 | 2300 | 2000 | 3250 | 3600 | 3600 | 3800 | 4000 |
| Tong front end to front axis | mm | 495 | 495 | 590 | 700 | 718 | 500 | 500 | 560 | 560 | 600 | 700 |
| Tong front end to fork | mm | 3000 | 3000 | 3000 | 2500 | 2500 | 3500 | 3500 | 4800 | 4000 | 4000 | 4200 |
| Peel rotating angle | — | 360° continuous rotation | 360° continuous rotation | 360° continuous rotation | 360° continuous rotation | 360° continuous rotation | 360° | 360° | 360° | 360° | 360° | 360° |
| Peel rotating speed | rot/min | 4 | 4 | 4 | 4 | 4 | 5,2 | 5,2 | 4,6 | 4,2 | 3,7 | 3,2 |
| Peel tilting angle | ° | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 10/10 | 10/10 | 10/10 | 10/10 | 10/10 | 10/10 |
| Minimum turning radius | mm | 2420 | 2420 | 3370 | 3700 | 3900 | 3300 | 3550 | 3800 | 4250 | 4560 | 4870 |
| Wheel base | mm | 1700 | 1700 | 2250 | 2500 | 2800 | 2450 | 2650 | 3050 | 3250 | 3500 | 3800 |
| Front tyres (solid) | buc | 2 | 2 | 4 | 4 | 4 | 2 | 4 | 4 | 4 | 4 | 4 |
| Rear tyres (solid) | buc | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Dimensions L × W × H | m | 5,9×1,2×2,1 | 5,9×1,2×2,1 | 6,9×2,0×2,5 | 6,9×2,2×2,6 | 7,2×2,3×2,7 | 7,4×2,78×3,2 | 7,6×2,6×3,0 | 8,5×2,74×3,2 | 9,0×2,9×3,2 | 10,5×3,2×3,0 | 11,3×3,5×3,5 |
| Travelling speed | km/h | 19/21 | 19/21 | 26/30 | 26/30 | 26/30 | 0–9,6 | 0–9,6 | 0–9,6 | 0–9,6 | 0–9,6 | 0–9,6 |
* Specifications shown correspond to the reference model in each series and may vary by configuration.
Advantages
Why choose Anyang
A complete equipment range
From billet handling and ring rolling to shearing, descaling and final pressing — 15 distinct machines cover virtually every complementary stage of the forging workflow.
01Integration with existing lines
Every machine is designed to run standalone or integrated, alongside Anyang CNC hammers and presses, into fully automated production lines.
02Precision and material efficiency
Technologies such as ring rolling and cross wedge rolling reduce material waste and improve dimensional accuracy compared with conventional cutting or free-forging methods.
03Robust construction, modern control
Welded steel frames, PLC/CNC control and reliable hydraulic or pneumatic systems, built for continuous, multi-shift operation.
