Adjustable force
Riveting force can be set between 16 and 50 tons, depending on the rivet diameter (8–16 mm) and the application.
01
Hydraulic riveting machines
Hydraulic Riveting Machine
Shock-free, precise and fast riveting. Hydraulic riveting machines for cold or hot riveting, widely used for assembling truck frames, brake shoes, bridges and containers. Riveting force from 16 to 50 tons.
- 16–50T
- Riveting force
- Ø8–16
- Rivet diameter (mm)
- 2
- Versions available
About the product
Hydraulic riveting for precision assembly
The Hydraulic Riveting Machine is a fully hydraulic-driven system that achieves cold riveting with better quality than pneumatic riveting.
Compared to pneumatic riveting presses, the hydraulic machine runs quietly, at high speed and with high efficiency, making it well suited for mass production.
It is widely used for riveting truck frames, brake shoes, steel bridges, containers and other structures that require strong riveted joints.
Our range includes both the standard hydraulic riveting machine and a servo-driven version, which brings additional energy savings and lower noise.
Advantages
Why choose Anyang riveting machines
Quiet operation
No impact shocks or noise typical of pneumatic presses — a better working environment for operators and steady productivity.
02PLC-controlled
High-pressure Italian ATOS hydraulic pump with PLC electrical control for repeatability and precision on every rivet.
03Flexible configurations
Hanging or horizontal clamp types with adjustable throat depth, suited to different part geometries and tight working spaces.
04Models
All equipment in this category

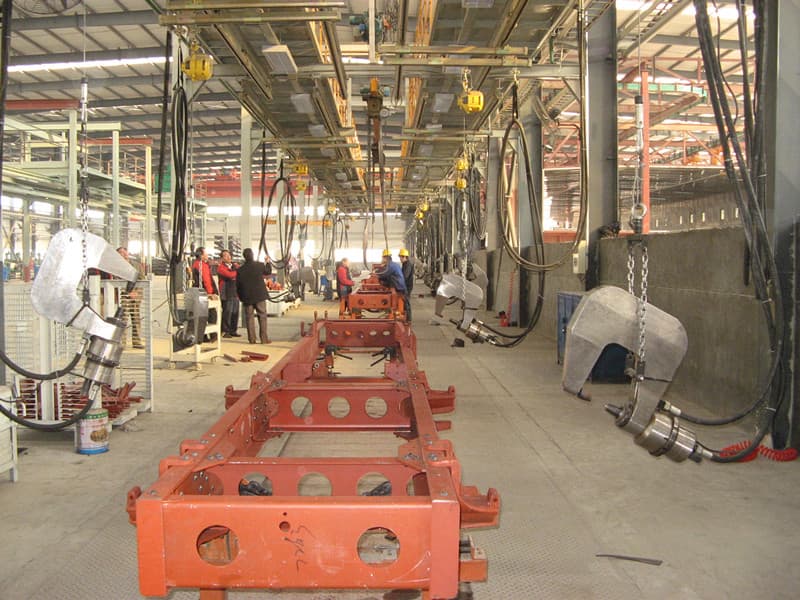

Hydraulic Riveting Machine
Fully hydraulic cold riveting system with a T92Y-series pump station and hanging or horizontal clamp — used on truck frame assembly lines and other welded/riveted structures.
- Riveting force
- 16–50T
- Rivet diameter
- 8–16 mm
- Pump station
- T92Y series
- Control
- PLC electric
Servo Hydraulic Riveting Machine
Servo-motor-driven version that eliminates the booster cylinder and overflow valve — 40–60% energy savings and 8–10 dB lower noise than the traditional hydraulic riveting machine.
- Energy savings
- 40–60%
- Noise reduction
- 8–10 dB
- Response time
- ~50 ms
Gallery
Riveting machines in production and in the workshop
