CNC Ring Rolling Machine (Horizontal)

D53K

Horizontal CNC-controlled ring rolling machine for large seamless ring forgings, used across machinery, automotive, marine, petrochemical, aerospace and wind-power industries.

Request a quote Send email

Overview

About this machine

The D53K series ring rolling machine is a professional apparatus for manufacturing ring forgings, with high efficiency, high precision and good working conditions.

The ring miller can make rings from 1000 mm to 12000 mm.

Key data

Main specifications

Ring diameter range: 1000mm–12000mm
Rolling axes: Radial & axial
Materials: Carbon/alloy/stainless steel, titanium, copper, aluminum

Full technical parameters are confirmed together with our engineers, based on your part and production volume.

Features

Design features and technology

High material utilization

High material utilization.

Good quality

Good quality of the ring forgings produced.

Good working conditions

Good working conditions and high productivity.

Low costs

Low production costs.

In use

Applications

Seamless ring forgings: bearing rings, gearing rings, flanges, hubs, thin-wall cylinders, wind generator flanges, welding neck flanges
Materials: carbon steel, alloy steel, stainless steel, titanium alloy, copper alloy, aluminium alloy, high temperature alloy
Industries: machinery, auto, vessel, petrochemical, aerospace, atomic energy, wind generator

Gallery

CNC Ring Rolling Machine (Horizontal)

Video

See it working

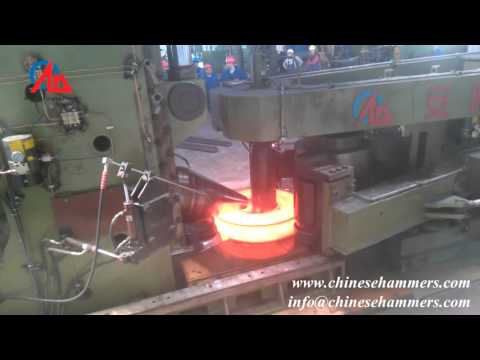

D53K Series Horizontal Ring Rolling Machine for forging ring#ring #RingRollingMachineWatch on YouTube ↗

2m ring rolling machine and 1250 ton hydraulic forging press working in south africaWatch on YouTube ↗

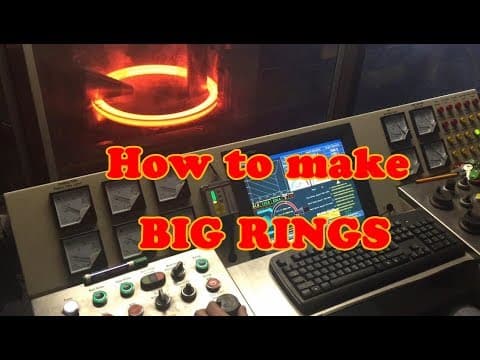

how to mill big ring for oil pipe flange, anyang 2000mm ring rolling machineWatch on YouTube ↗

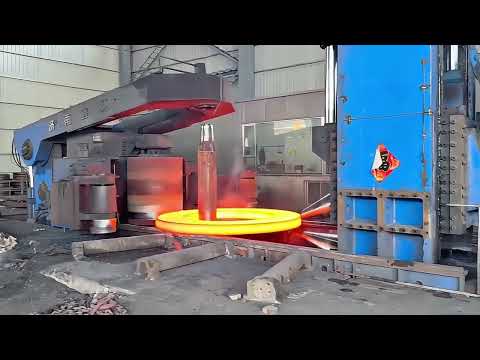

high productivity forging rolling ringWatch on YouTube ↗

Main technical parameters of the D53K series CNC ring rolling machine

Parameter	Unit	D53K-1200	D53K-2000	D53K-3000	D53K-5000	D53K-6300 (I)	D53K-6300 (II)	D53K-7000	D53K-10000	D53K-12000
Radial rolling force	kN	1250	1600	2000	2500	4000	5000	6300	10000	16000
Axial rolling force	kN	800	1250	1600	2000	3150	4000	4500	8000	8000
Radial motor	kW	315	2×200	2×280	2×400	2×500	2×630	2×630/800	2×1250	2×2000
Axial motor	kW	250	2×200	2×280	2×400	2×500	2×630	2×630	2×1300	2×1300
Rolled ring outer diameter	mm	400–1200	600–2000	700–3500	800–5000	900–6300	900–6300	900–7000	1250–10000	1500–12000
Taper roller spacing	mm	40–350	80–550	80–650	90–800	100–1000	100–1400	80–1350	110–1800	130–2000
Maximum rolling height	mm	300	420	500	600	850	1000	1200	1650	2200
Finished product wall thickness	mm	120	200	250	300	420	500	540	800	800
Length	mm	8500	13500	19000	21000	25000	27000	30000	40000	47000
Width	mm	1930	2400	3400	4500	5800	6000	6500	8000	10000
Height above ground	mm	3850	5200	5800	6200	7200	8900	9200	10500	11500

* Specifications shown correspond to the reference model in each series and may vary by configuration.

Advantages

Why choose Anyang

A complete equipment range

From billet handling and ring rolling to shearing, descaling and final pressing — 15 distinct machines cover virtually every complementary stage of the forging workflow.

Integration with existing lines

Every machine is designed to run standalone or integrated, alongside Anyang CNC hammers and presses, into fully automated production lines.

Precision and material efficiency

Technologies such as ring rolling and cross wedge rolling reduce material waste and improve dimensional accuracy compared with conventional cutting or free-forging methods.

Robust construction, modern control

Welded steel frames, PLC/CNC control and reliable hydraulic or pneumatic systems, built for continuous, multi-shift operation.
