Fully hydraulic drive
Fully hydraulic manipulator with a lateral shift function for precise positioning of the billet under the forging tool.
Forging Manipulator & Charger
CNC Forging Manipulator
A fully hydraulic manipulator with lateral shift that clamps ingots or shaft forgings under an open die hammer or press, boosting productivity and forging quality while reducing operator effort.
Overview
About this machine
The CNC forging manipulator is the fully hydraulic driven type with lateral shift function, which can be operated by manual, semi-auto or auto, and is able to connect with the hydraulic free forging press through digital input to realize linkage operation.
The equipment is used to secure shaft forgings and billet under an open die hammer or open die press, significantly enhancing productivity and forging quality while reducing labour intensity and enabling mechanized forging production.
Key data
Main specifications
- Drive
- Fully hydraulic
- Control
- Manual / semi-automatic / automatic
- Linkage
- Digital sync with hydraulic press
- Application
- Ingot & shaft forging clamping
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
Three operating modes
Can be operated manually, semi-automatically or fully automatically, depending on the type of production and the operator’s experience.
Linkage with the press
Connects to the hydraulic free forging press through digital input and works in linkage with it.
Productivity and quality
Significantly enhances productivity and forging quality while reducing the physical effort required from operators.
In use
Applications
- Securing and handling shaft forgings and billets under an open die hammer or open die press
- Mechanized open die forging production
- Installations in service: 10T in India, 10T in China, 15T and 30T in Romania, 20T for a Korean customer
Gallery

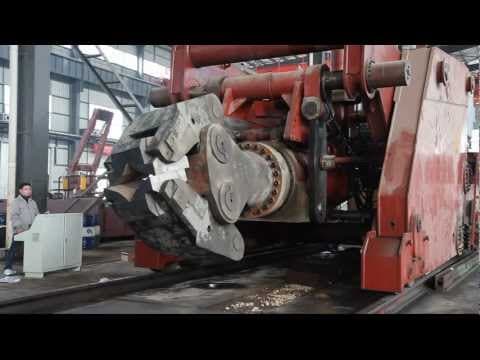

CNC Forging Manipulator
Video

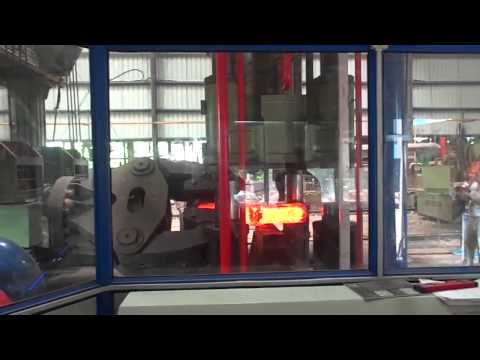

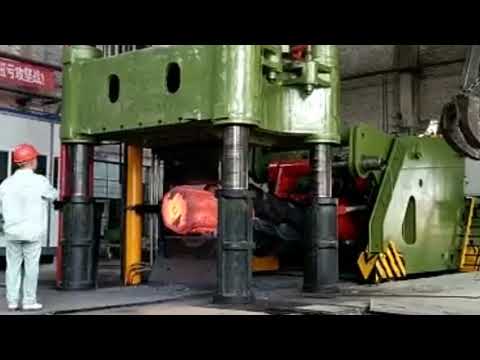

See it working
Main technical parameters of the CNC forging manipulator
| Parameter | Unit | 10 t | 20 t | 30 t | 40 t | 50 t |
|---|---|---|---|---|---|---|
| Rated load | t | 10 | 20 | 30 | 40 | 50 |
| Maximum clamping torque | t·m | 25 | 50 | 100 | 100 | 150 |
| Clamping range (V-shaped jaws) | mm | φ110–φ1050 | φ150–φ1300 | φ120–φ1800 | φ200–φ1600 | φ350–φ2000 |
| Maximum clamping capacity for pancakes (clamping jaws) | mm | φ1500 | 0–φ1800 | 0–φ2500 | — | — |
| Clamp head extension (from front wheel centre) | mm | 2000 | 2600 | 2650 | — | — |
| Clamp body centre — minimum horizontal height | mm | 700 | 800 | 1100 | — | — |
| Clamp body centre — maximum horizontal height | mm | 2100 | 2300 | 3100 | — | — |
| Track gauge | mm | 3400 | 3300 | 3800–4200 | 4500 | 4500 |
| Clamp head rotation maximum | mm | 1600 | 2200 | 2800 | — | — |
| Clamp head swing | mm | ±180 | ±180 | ±200 | ±250 | ±220 |
| Clamp body parallel lifting speed | mm/s | 100 | 110 | 120 | 150 | 180 |
| Clamp body horizontal lateral speed | mm/s | 80 | 80 | 70 | — | — |
| Clamp body horizontal buffer | mm | 70 | ±85 | ±95 | — | — |
| Equipment dimensions (L × W × H) | m | 10,6×4,26×3,95 | 10,4×4,1×3,6 | 11,4×5,2×4,65 | — | — |
| System working pressure / clamp | MPa | max. 25/16 | 16/16 | 25/18 | — | — |
| Complete machine installation power | kW | 152 | 140 | 210 | — | — |
| Machine weight | t | 58 | 96 | 140 | — | — |
* Values are indicative and can be adapted to your specific application requirements.
Advantages
Why choose Anyang
Fully hydraulic drive
Every motion — travel, rotation, clamping, lifting — is hydraulically driven, delivering constant force and fine speed control.
01Flexible control
Manual, semi-automatic or fully automatic operation, with the option to digitally synchronize with the forging press or hammer.
02Increased productivity
Reduces downtime and operator physical effort, significantly raising the output rate of the forging line.
03Diverse range
From high-capacity CNC manipulators to mobile and rail-mounted models, adapted to any workshop layout.
