Forging Manipulator & Charger
Mobile Forging Charging Manipulator
A self-propelled, wheel-mounted manipulator used for loading and transporting workpieces from the ground, from the furnace, and to the forging equipment — fast cycles, high precision and low operating cost.
Overview
About this machine
The mobile manipulator is mainly used for working piece loading and charging, and also for transportation of working pieces.
The equipment handles the complete workflow: charging from ground level, loading into furnaces, retrieving heated pieces and charging them into forging hammers, presses or ring rolling machines. Additional capabilities include transporting workpieces and assisting with saddle forging, die changes and material handling.
Key data
Main specifications
- Type
- Self-propelled, chassis-mounted
- Function
- Loading, transport, furnace charging
- Compatibility
- Hammers, presses, ring rolling mills
- Benefit
- Fast motion, low running cost
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
Reduced operating costs
Operational costs are reduced significantly compared with manual handling.
Rapid, precise movements
Rapid movements with the highest positioning precision are achieved.
Higher quality and capacity
The quality of the forgings as well as the capacity of the production line can be significantly increased.
In use
Applications
- Picking up workpieces at ground level and loading them into the furnace
- Retrieving heated pieces and charging forging hammers, presses and ring rolling machines
- Transporting workpieces around the shop
- Assisting with saddle forging, die changes and material handling
- Installations in service: customers in the USA and China
Gallery

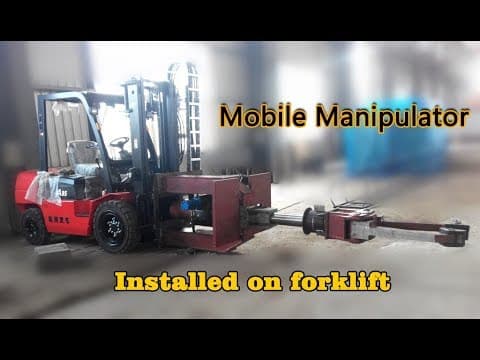

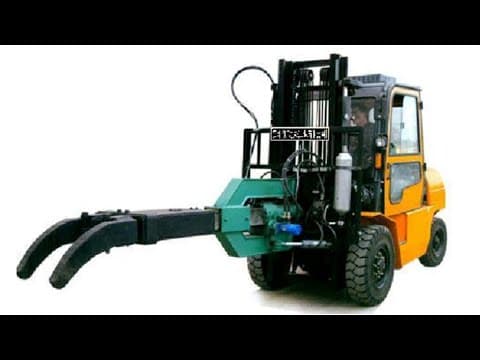

Mobile Forging Charging Manipulator
Video
See it working
Main technical parameters of the ZHJW series mobile charging manipulator
| Parameter | Unit | ZHJW-1 | ZHJW-1.5 | ZHJW-2 |
|---|---|---|---|---|
| Nominal loading weight | T | 1 | 1.5 | 2 |
| Holding diameter range | mm | φ50–φ700 | φ50–φ800 | φ80–φ900 |
| Clamp rod min. height | mm | 550 | 650 | 650 |
| Clamp rod max. height | mm | 1600 | 1600 | 1600 |
| Clamp rod up / down pitch angle | ° | 6°/12° (forklift) | 6°/12° (forklift) | 6°/12° (forklift) |
| Clamp rod rotating angle | ° | 360 | 360 | 360 |
| Clamp front tip to front wheel center distance | mm | ≥3800 | ≥3800 | 2800 |
* Values are indicative and can be adapted to your specific application requirements.
Advantages
Why choose Anyang
Fully hydraulic drive
Every motion — travel, rotation, clamping, lifting — is hydraulically driven, delivering constant force and fine speed control.
01Flexible control
Manual, semi-automatic or fully automatic operation, with the option to digitally synchronize with the forging press or hammer.
02Increased productivity
Reduces downtime and operator physical effort, significantly raising the output rate of the forging line.
03Diverse range
From high-capacity CNC manipulators to mobile and rail-mounted models, adapted to any workshop layout.
04See also
Other equipment in this category
Need a customized quote?
Our technical team helps you choose the right manipulator for your forging line. We respond quickly on WhatsApp or email.
