PLC control with touch screen
Intellectualized PLC control system with a human-computer interface touch screen.
Full Hydraulic Open Die Forging Hammer
Open Die Hydraulic Forging Press
Y13
Hydraulic press for free forging with fast forging, normal forging and pressure-holding functions, suited for upsetting, drawing, piercing and bending — PLC and touch-screen control, three-crossbeam/four-column structure, and multistage overload protection.
Overview
About this machine
The range covers both general hydraulic free forging presses and specialised ring rolling blanking hydraulic presses.
The general hydraulic free forging press serves metal open die forging and bolster die forging operations, offering fast forging, normal forging and pressure keeping functions to satisfy various technical requirements such as upsetting, drawing out, piercing, saddle forging, bending and offset forging.
The product line operates from 800T to 16000T capacity.
Key data
Main specifications
- Capacity
- 800–16000 T
- Structure
- 3 crossbeams, 4 columns
- Control
- PLC + touch-screen HMI
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
Three cross beams and four columns
The three cross beams and four columns configuration provides a high rigidity structure.
Multilevel pressure discharging
A multilevel pressure discharging system increases the equipment’s stability.
High forging depth
The press achieves high forging depth capability.
Manipulator compatible
Compatible with manipulator systems for integrated forging line assembly.
Multistage overload protection
Includes multistage overloading protection and a reliable electrical cooling system.
Mobile and rotary worktable
Mobile and rotary worktable options are available.
Long-distance control
Long-distance control capability reduces labour intensity and improves working conditions.
Quick upper die changing
A convenient upper forging die changing device enhances production efficiency.
In use
Applications
- Metal open die forging and bolster die forging
- Upsetting, drawing out, piercing, saddle forging, bending, offset forging
- Ring rolling blanking
- Capacities from 800T to 16000T
Gallery

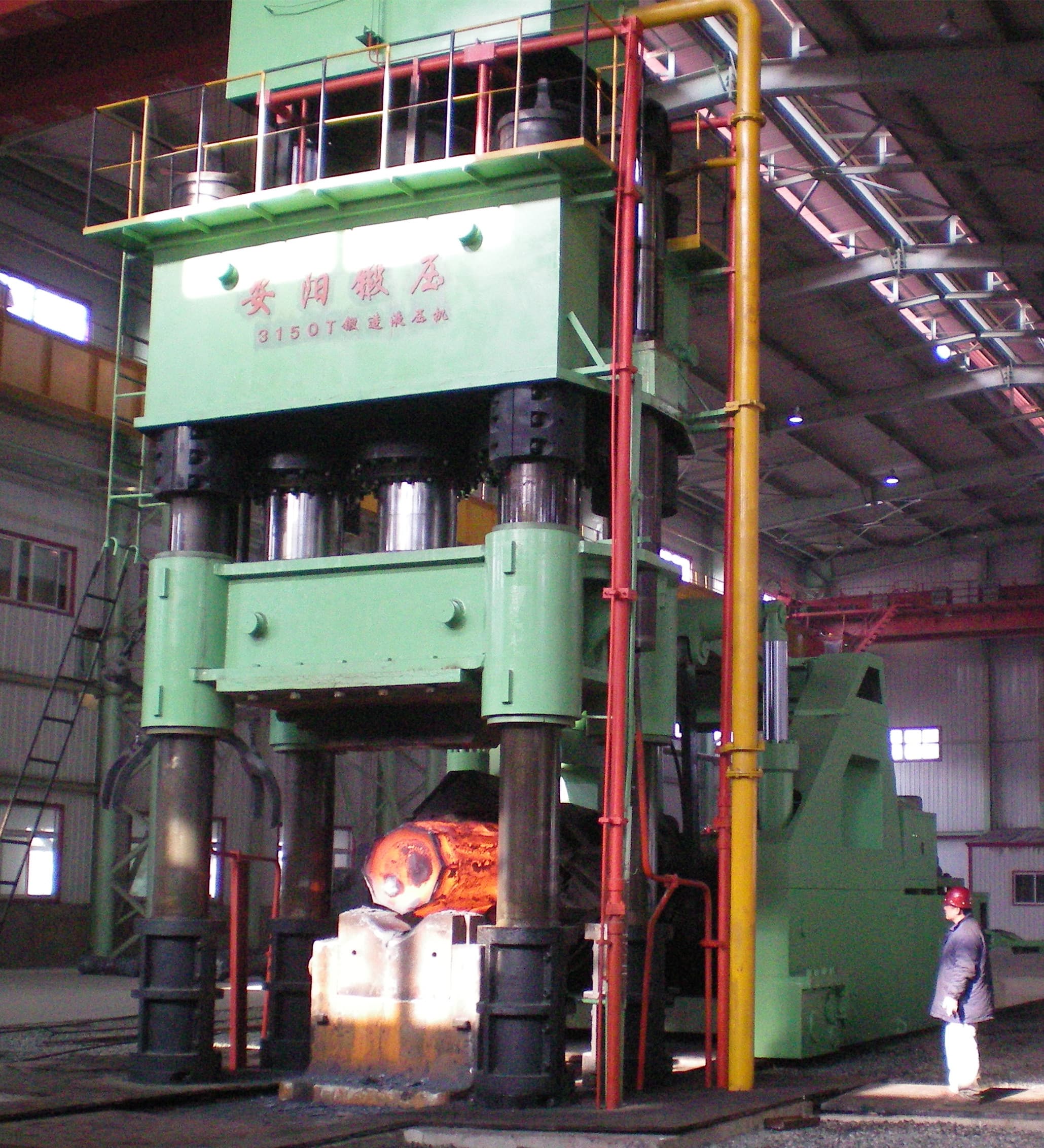

Open Die Hydraulic Forging Press

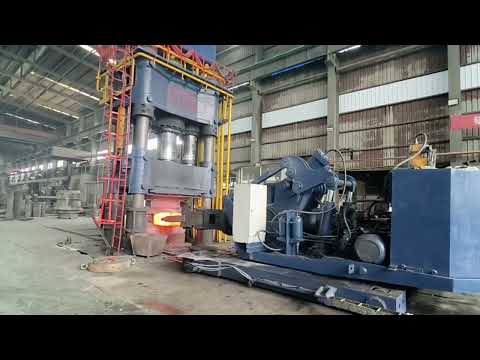

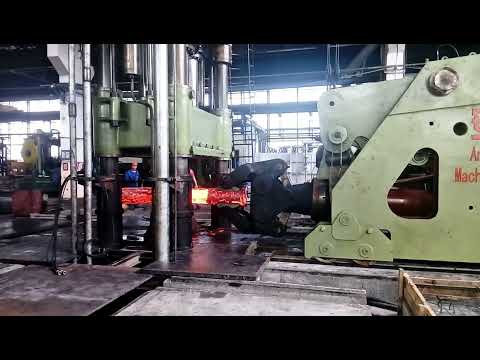

Video
See it working
Technical specifications
Main technical parameters of the Y13 series open die hydraulic forging press
Swipe the table sideways to see all models →
| Parameter | Unit | Y13-800 | Y13-1250 | Y13-1600 | Y13-2000 | Y13-2500 | Y13-3150 | Y13-4000 | Y13-5000 | Y13-6300 | Y13-8000 | Y13-10000 | Y13-12500 | Y13-16000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal pressure | MN | 8 | 12,5 | 16 | 20 | 25 | 31,5 | 40 | 50 | 63 | 80 | 100 | 125 | 160 |
| Clearance distance | mm | 2300 | 2600 | 2900 | 3100 | 3300 | 3800 | 4000 | 4600 | 5300 | 6000 | 6600 | 7200 | 7800 |
| Slide stroke | mm | 1000 | 1200 | 1400 | 1500 | 1600 | 1800 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | 4000 |
| Column centre distance | mm | 1900×1100 | 2200×1300 | 2600×1400 | 2800×1500 | 3200×1600 | 3600×1900 | 4400×2100 | 4600×2200 | 4700×2300 | 4800×2400 | 5100×2600 | 5500×2800 | 6000×3000 |
| Forging speed — down speed | mm/s | 300 | 300 | 300 | 300 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Working speed — level 1 [nominal pressure] | mm/s [MN] | 68 [8] | 68 [12,5] | 180 [6] | 160 [8] | 172 [10] | 164 [12,5] | 152 [16,5] | 186 [16,5] | 183 [21] | 183 [27] | 183 [33] | 180 [41] | 180 [53] |
| Working speed — level 2 [nominal pressure] | mm/s [MN] | / | / | 108 [10] | 105 [12] | 102 [15] | 104 [19] | 104 [23,5] | 93 [33,5] | 92 [42] | 92 [53] | 92 [67] | 90 [84] | 90 [107] |
| Working speed — level 3 [nominal pressure] | mm/s [MN] | / | / | 68 [16] | 63 [20] | 64 [25] | 64 [31,5] | 62 [40] | 62 [50] | 61 [63] | 61 [80] | 61 [100] | 60 [125] | 60 [160] |
| Return speed | mm/s | 300 | 300 | 300 | 300 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Forging frequency — rapid forging (level 1) | lov./min | 60–70 | 60–70 | 60–70 | 60–70 | 60–70 | 55–65 | 50–60 | 45–55 | 40–50 | 35–45 | 30–40 | 25–30 | 20–25 |
| Forging frequency — standard forging (level 3) | lov./min | / | / | 25–35 | 25–35 | 25–35 | 20–30 | 20–30 | 20–30 | 15–25 | 10–20 | 7–15 | 5–10 | 3–6 |
| Travelling worktable — size | mm | 2700×1300 | 3200×1500 | 3500×1600 | 3700×1700 | 5000×2000 | 5000×2300 | 6000×2500 | 6000×2800 | 7000×3000 | 7000×3200 | 8000×3500 | 9000×4000 | 12000×4500 |
| Travelling worktable — left & right stroke | mm | ±1000 | ±1400 | ±1600 | ±1800 | ±2000 | ±2500 | ±2500 | ±3000 | ±3000 | ±3000 | ±3250 | ±3500 | ±4000 |
| Dimensional accuracy | mm | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1,5 | ±1,5 | ±1,5 | ±2 | ±2 | ±3 |
| Total power | kW | 700 | 1050 | 1400 | 1600 | 2050 | 2500 | 3200 | 3800 | 4800 | 6200 | 7500 | 9500 | 12000 |
| Height above floor | mm | ≤6800 | ≤8000 | ≤8500 | ≤9000 | ≤9500 | ≤10000 | ≤11000 | ≤13000 | ≤14500 | ≤16000 | ≤17500 | ≤19000 | ≤22000 |
* Values are indicative and can be adapted to your specific application requirements.
Advantages
Why choose Anyang
Process versatility
From compact workshop pneumatic hammers to 16000T hydraulic presses, the range covers drawing-out, upsetting, punching, bending and twisting of free-forged parts of any size.
01Precision hydraulic control
Fully integrated hydraulic systems eliminate energy losses and allow fine adjustment of blow force, from light impacts to powerful strikes, with the ram suspendable at any position.
02Safety and automation
PLC control with touch-screen HMI, multistage overload protection, and remote operation from the control room for high-capacity presses.
03Durable construction
Robust single-arm, arch or bridge-type structures in cast iron or cast steel, with over 30 years of documented service in workshops worldwide.
