High efficiency
The advanced hydraulic system can complete the forging process in a shorter time, greatly improving production efficiency.
Full Hydraulic Open Die Forging Hammer
Fast Hydraulic Forging Press
Y13K
Fast hydraulic press with full-automatic, semi-automatic, manual or linkage working modes, for upsetting, drawing, punching, ring expansion, twisting and bending — high forging frequency, high precision and reduced energy consumption.
Overview
About this machine
The Y13K series is an advanced hydraulic pressing system that adopts an advanced control system and detection devices, which can realize different operation modes such as fully automatic, semi-automatic, manual, linkage and others.
Key data
Main specifications
- Working modes
- Automatic, semi-automatic, manual
- Processes
- Upsetting, drawing, punching, bending
- Benefit
- High frequency, high precision
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
High power
Equipped with powerful hydraulic drive systems, suitable for large-scale, high-load forging operations.
Precision control
The intelligent control system ensures that parameters such as pressure, speed and temperature of the forging process are precisely controllable.
Automation level
Some models feature automatic feeding, die adjustment and monitoring systems to reduce manual operations.
Flexibility
Can adapt to the forging needs of various materials and complex structures, with broad applications.
Safety features
Includes multiple safety protection measures for operator protection.
Structural strength
Made of high-strength materials to ensure the stability and durability of the equipment in long-term high-load operation.
In use
Applications
- Processes: upsetting, drawing, punching, ring expansion, twisting, bending, shifting and cutting
- Materials: carbon structural steel, alloy structural steel, carbon tool steel, bearing steel, spring steel, stainless steel, cold and hot die steel, high temperature alloy steel and titanium alloy
- Industries: engineering machinery, automobiles, trains, petrochemicals, nuclear power, aerospace and shipping
Gallery

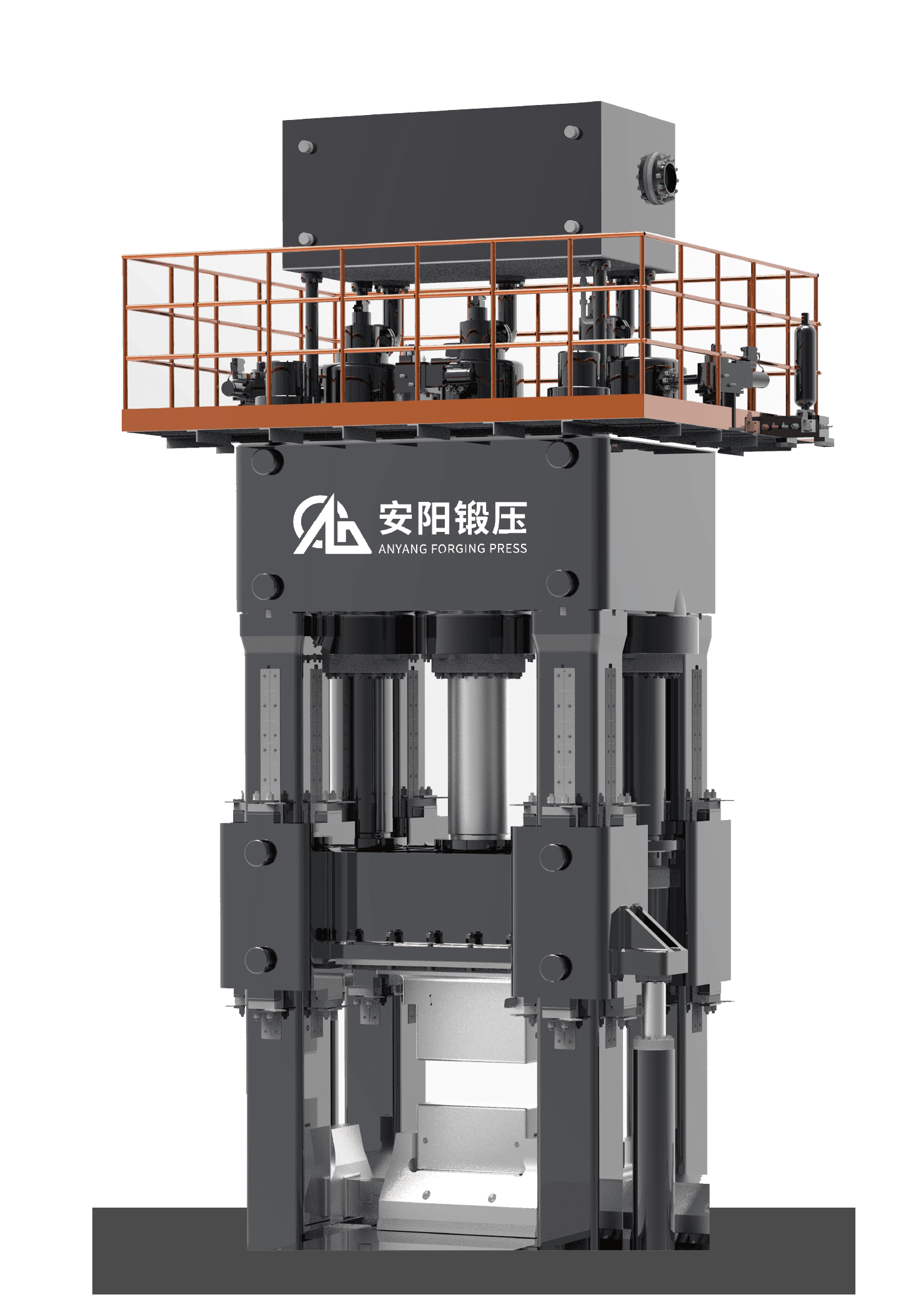

Fast Hydraulic Forging Press
Technical specifications
Main technical parameters of the Y13Y series fast hydraulic forging press
Swipe the table sideways to see all models →
| Parameter | Unit | Y13Y-800 | Y13Y-1250 | Y13Y-1600 | Y13Y-2000 | Y13Y-2500 | Y13Y-3150 | Y13Y-4000 | Y13Y-5000 | Y13Y-6300 | Y13Y-8000 | Y13Y-10000 | Y13Y-12500 | Y13Y-16000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Structural form | — | Three-beam, four-column prestressed frame | Three-beam, four-column prestressed frame | Three-beam, four-column prestressed frame | Three-beam, four-column prestressed frame | Three-beam, four-column prestressed frame | Three-beam, four-column, multi-strut prestressed frame | Three-beam, four-column, multi-strut prestressed frame | Three-beam, four-column, multi-strut prestressed frame | Three-beam, four-column, multi-strut prestressed frame | Three-beam, four-column, multi-strut prestressed frame | Three-beam, four-column, multi-strut prestressed frame | Three-beam, four-column, multi-strut prestressed frame | Three-beam, four-column, multi-strut prestressed frame |
| Nominal pressure | MN | 8 | 12,5 | 16 | 20 | 25 | 31,5 | 40 | 50 | 63 | 80 | 100 | 125 | 160 |
| Clearance | mm | 2300 | 2600 | 2900 | 3100 | 3300 | 3800 | 4000 | 4600 | 5300 | 6000 | 6600 | 7200 | 7800 |
| Slider travel | mm | 1000 | 1200 | 1400 | 1500 | 1600 | 1800 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | 4000 |
| Column centre distance | mm | 1900×1100 | 2200×1300 | 2600×1400 | 2800×1500 | 3200×1600 | 3600×1900 | 4400×2100 | 4600×2200 | 4700×2300 | 4800×2400 | 5100×2600 | 5500×2800 | 6000×3000 |
| Fast down speed | mm/s | 300 | 300 | 300 | 300 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Working speed — level 1 [nominal pressure] | mm/s [MN] | 45 [8] | 45 [12,5] | 120 [6] | 115 [8] | 115 [10] | 112 [12,5] | 110 [16,5] | 132 [16,5] | 130 [21] | 137 [27] | 138 [33] | 137 [41] | 134 [53] |
| Working speed — level 2 [nominal pressure] | mm/s [MN] | / | / | 72 [10] | 75 [12] | 68 [15] | 72 [19] | 75 [23,5] | 66 [33,5] | 65 [42] | 68 [53] | 69 [57] | 68 [84] | 67 [107] |
| Working speed — level 3 [nominal pressure] | mm/s [MN] | / | / | 45 [16] | 45 [20] | 45 [25] | 45 [31,5] | 48 [40] | 45 [50] | 45 [63] | 45 [80] | 45 [100] | 45 [125] | 45 [160] |
| Return speed | mm/s | 300 | 300 | 300 | 300 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Forging frequency — quick forging (level 1) | lov./min | 35–45 | 35–45 | 35–45 | 35–45 | 35–45 | 35–45 | 35–45 | 30–40 | 25–35 | 20–30 | 15–25 | 10–20 | 7–15 |
| Forging frequency — plain forging (level 3) | lov./min | / | / | 20–30 | 20–30 | 20–30 | 15–25 | 15–25 | 15–25 | 10–20 | 7–15 | 5–10 | 3–6 | 2–5 |
| Mobile worktable — size | mm | 2700×1300×200 | 3200×1500×300 | 3500×1600×300 | 3700×1700×300 | 5000×2000×300 | 5000×2300×300 | 6000×2500×300 | 6000×2800×350 | 7000×3000×350 | 7000×3200×380 | 8000×3500×400 | 9000×4000×420 | 12000×4500×450 |
| Mobile worktable — left & right stroke | mm | ±1000 | ±1400 | ±1600 | ±1800 | ±2000 | ±2500 | ±2500 | ±3000 | ±3000 | ±3000 | ±3250 | ±3500 | ±4000 |
| Forging precision | mm | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1,5 | ±1,5 | ±1,5 | ±2 | ±2 | ±3 |
| Total power | kW | 480 | 700 | 810 | 1050 | 1400 | 1800 | 2300 | 2800 | 3500 | 4600 | 5700 | 7100 | 8900 |
| Height above floor | mm | ≤6800 | ≤8000 | ≤8500 | ≤9000 | ≤9500 | ≤10000 | ≤11000 | ≤13000 | ≤14500 | ≤16000 | ≤17500 | ≤19000 | ≤22000 |
* Values are indicative and can be adapted to your specific application requirements.
Advantages
Why choose Anyang
Process versatility
From compact workshop pneumatic hammers to 16000T hydraulic presses, the range covers drawing-out, upsetting, punching, bending and twisting of free-forged parts of any size.
01Precision hydraulic control
Fully integrated hydraulic systems eliminate energy losses and allow fine adjustment of blow force, from light impacts to powerful strikes, with the ram suspendable at any position.
02Safety and automation
PLC control with touch-screen HMI, multistage overload protection, and remote operation from the control room for high-capacity presses.
03Durable construction
Robust single-arm, arch or bridge-type structures in cast iron or cast steel, with over 30 years of documented service in workshops worldwide.
