Unique blowing valve system
The proprietary blowing valve system delivers extremely high repeatability of blowing energy.
Electro-Hydraulic Close Die Forging Hammer
CNC Hydraulic Close Die Forging Hammer
C92K
Program-controlled double-action hydraulic hammer for mass production of precision die forgings, with support for automated production lines and robotic integration.
Overview
About this machine
Anyang CNC forging hammers serve mass production industries of metal precision die forgings such as automobiles, motorcycles, engineering machinery, hydraulic pipe fittings and instrument hardware.
The equipment is a hydraulic double-action program-controlled forging hammer with an HO-U structure, meeting the needs of low-carbon production, low vibration and high-efficiency production.
Key data
Main specifications
- Energy
- 16KJ–400KJ
- Structure
- HO-U body, X guide rail
- Precision
- ≤±1.5% deviation
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
Precise energy control
The quality of the forgings is stable, with a deviation of ≤±1.5% from blow to blow.
Programmable CNC control
The forging process is programmed, and the hammer supports networked and remote control.
U-shaped body with X-shaped guide rails
The U-shaped body and X-shaped guide rails provide high precision and allow multi-cavity die forging.
High strike frequency
A high blow frequency supports efficient production with short cycle times.
Slow hammer raise and lower
Slow movement of the ram makes die replacement and setup easier.
Safety functions
Short-stroke strike, vibration mode and anti-misoperation protection.
Automation ready
The hammer can be integrated into automated production lines with robotic loading and unloading.
In use
Applications
- Precision die forgings for the automotive and motorcycle industries
- Forgings for engineering and construction machinery
- Hydraulic pipe fittings
- Instrument hardware and components

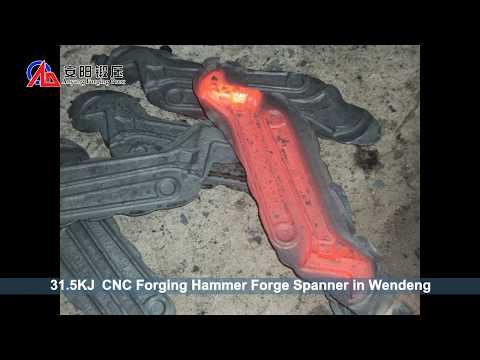

- Wrenches and other forged tools
Gallery

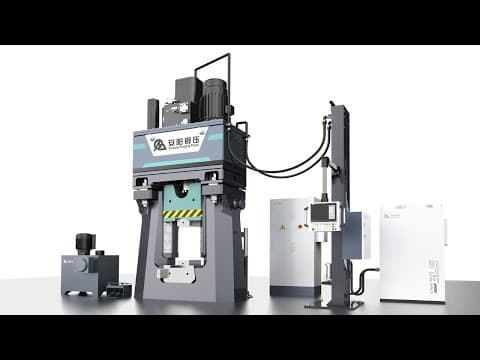

CNC Hydraulic Close Die Forging Hammer
Video

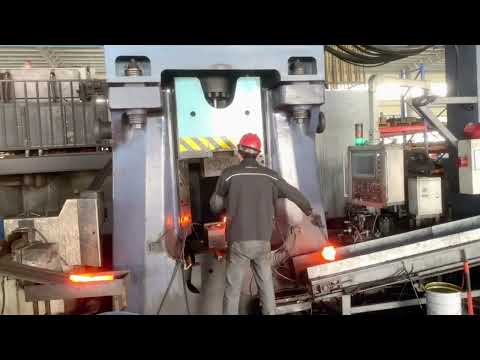

See it working
Technical specifications
Main technical parameters of the C92K series CNC close die forging hammer
Swipe the table sideways to see all models →
| Parameter | Unit | C92K-16 | C92K-25 | C92K-31.5 | C92K-40 | C92K-50 | C92K-63 | C92K-80 | C92K-100 | C92K-125 | C92K-160 | C92K-200 | C92K-250 | C92K-320 | C92K-400 | C92K-450 | C92K-500 | C92K-625 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Blow energy | kJ | 16 | 25 | 31.5 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 | 400 | 450 | 500 | 625 |
| Ram weight | kg | 1080 | 1700 | 2100 | 2700 | 3400 | 4350 | 5650 | 6900 | 8500 | 10000 | 12000 | 12800 | 14000 | 20000 | 22000 | 24000 | 28500 |
| Distance between guides | mm | 520 | 608 | 664 | 700 | 766 | 800 | 850 | 850 | 1000 | 1040 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 | 1300 |
| Max. blow frequency | min⁻¹ | 90 | 90 | 85 | 85 | 85 | 80 | 75 | 75 | 70 | 55 | 55 | 50 | 45 | 40 | 40 | 40 | 33 |
| Blow stroke | mm | 480–640 | 495–685 | 500–700 | 500–710 | 510–740 | 520–760 | 560–810 | 600–850 | 700–950 | 800–1000 | 900–1100 | 950–1150 | 950–1150 | 1100–1300 | 1150–1350 | 1150–1350 | 1150–1350 |
| Main motor power | kW | 37 | 55 | 55 | 90 | 2×55 | 2×55 | 2×90 | 2×90 | 2×110 | 3×90 | 4×90 | 4×90 | 4×110 | 6×110 | 6×110 | 6×110 | 6×110 |
* Values are indicative and can be adapted to your specific application requirements.
Advantages
Why choose Anyang
Energy savings
Over 90% reduction in energy consumption compared to classic steam or compressed-air hammers — a direct impact on costs and emissions.
01Easy operation
Low operating and maintenance costs, maximum production agility and minimal setup times.
02Operating safety
The system is equipped with motion-locking devices, ensuring operator protection under any working conditions.
03Robust construction
Sturdy, resilient structure designed for long-term durability and consistent performance.
