Near-net-shape forming and precision manufacturing
Enables one-time forging of complex parts with deep holes, grooves and internal cavities — drive shaft forks, valve bodies, tee fittings — with dimensions approaching the finished product.
Electro-Hydraulic Close Die Forging Hammer
Flexible Multi-Directional Hydraulic Press
Y16
Multiple synchronized hydraulic cylinders forge complex, near-net-shape parts with deep holes, grooves and internal cavities in a single operation.
Overview
About this machine
The machine applies pressure to the workpiece from multiple angles and in multiple dimensions, through several hydraulic cylinders working together in different directions.
The press simulates multi-point forging processes for complex parts, using multi-channel hydraulic systems, intelligent controls and high-strength structural components.
Key data
Main specifications
- Forming
- Multi-directional, near-net-shape
- Structure
- Multiple hydraulic cylinders
- Applications
- Shafts, valve bodies, tee fittings
Full technical parameters are confirmed together with our engineers, based on your part and production volume.
Features
Design features and technology
Material utilization
Closed-die forging minimizes scrap flash, while the near-net-shape characteristics reduce machining allowances.
Fiber flow lines
Multi-directional pressure creates continuous, unbroken fiber flow lines, improving fatigue strength, impact toughness and load-bearing capacity.
Internal structure
Multi-directional pressure welds internal defects such as porosity and air bubbles together, producing high-quality forgings with a dense, uniform structure.
Precision and consistency
The working stroke, pressure and speed of the hydraulic press can be precisely programmed and controlled, enabling automated assembly and reliable product performance.
In use
Applications
- Complex-shaped part forging — hollow frames, branch forgings, fork forgings, valve bodies, pipe joints, shafts
- Large-size multi-directional forming
- High-precision, high-strength parts — automotive structural and spacecraft components
- Heavy-load, multi-material composite forging
Gallery
Flexible Multi-Directional Hydraulic Press

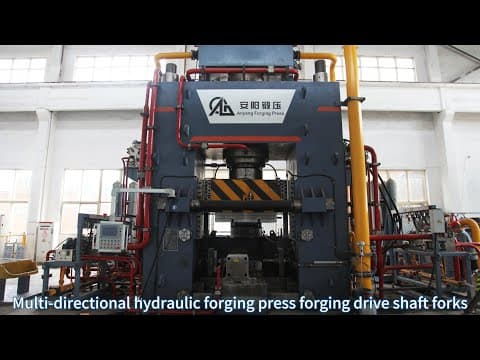

Video
See it working
Advantages
Why choose Anyang
Energy savings
Over 90% reduction in energy consumption compared to classic steam or compressed-air hammers — a direct impact on costs and emissions.
01Easy operation
Low operating and maintenance costs, maximum production agility and minimal setup times.
02Operating safety
The system is equipped with motion-locking devices, ensuring operator protection under any working conditions.
03Robust construction
Sturdy, resilient structure designed for long-term durability and consistent performance.
